Shear Wall Placement: Why Location Matters More Than Quantity

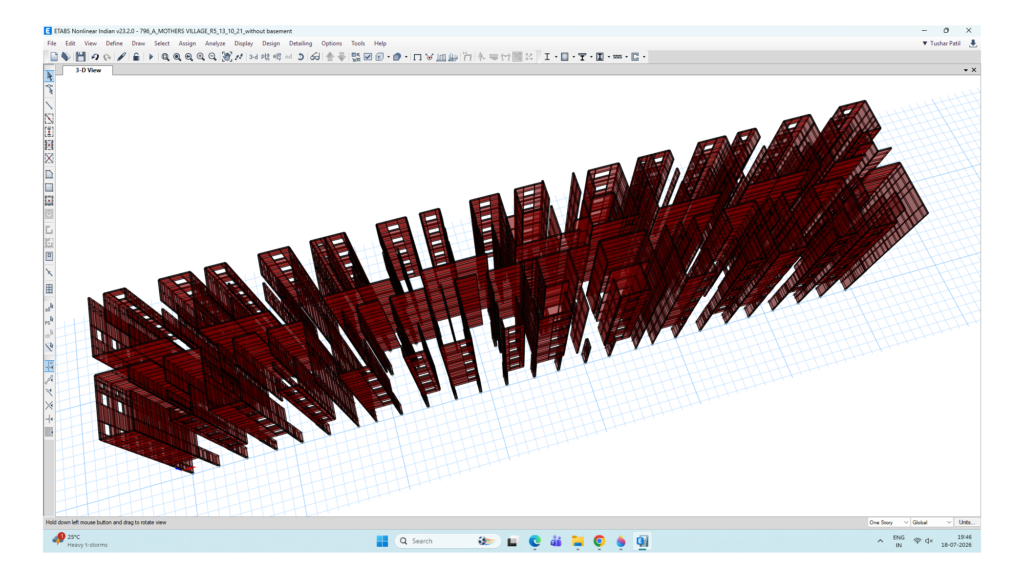

Introduction
Shear walls are among the most effective structural elements for resisting earthquake and wind forces in reinforced concrete buildings.
A common assumption is that increasing the number or thickness of shear walls will automatically improve structural performance.
In practice, the location and arrangement of shear walls can be more important than their total quantity.
An inefficient arrangement may result in excessive torsion, uneven force distribution, and increased foundation demand—even when a large amount of concrete has been provided.
The Role of Shear Walls
Shear walls primarily provide:
- Lateral strength
- Lateral stiffness
- Control of storey displacement
- Control of inter-storey drift
- Resistance to overturning forces
For efficient behaviour, walls should be arranged to provide adequate stiffness in both principal directions of the building.
Centre of Mass and Centre of Rigidity
A building’s mass and lateral stiffness are rarely distributed perfectly.
The centre of mass represents the effective location of the building mass, while the centre of rigidity represents the effective location of lateral stiffness.
When these two centres are significantly separated, lateral loading can cause the building to twist in addition to translating.
This twisting response is known as torsional behaviour.
Excessive torsion can lead to:
- Larger displacement at building edges
- Uneven demand on walls and columns
- Concentration of reinforcement
- Increased foundation reactions
- Inefficient structural performance
More Walls Can Sometimes Increase Torsion
Consider a building with a reasonably balanced structural system. If a very stiff wall is added only at one extreme edge, the centre of rigidity may shift towards that wall.
Although the total lateral stiffness has increased, the eccentricity between mass and stiffness may also increase.
The result can be a stronger torsional response.
This is why shear walls should not be added only where architectural space happens to be available. Their effect on the entire building must be studied.
Core Walls and Perimeter Walls
Central lift and staircase cores are commonly used as primary lateral systems because they offer:
- Functional integration with architecture
- Continuity over the building height
- Efficient grouping of structural walls
However, a compact central core may not always provide sufficient torsional resistance.
Strategically located perimeter walls can significantly improve performance by increasing the effective lever arm of the lateral system.
The most efficient solution often involves an appropriate balance between core stiffness and perimeter resistance.
Orientation Matters
A wall is generally much stiffer in its own plane than perpendicular to it.
Therefore, the orientation of walls must correspond to the required resistance in each building direction.
A building may contain several walls and still remain flexible in one direction if the walls are poorly oriented.
Continuity Is Critical
A well-positioned wall should ideally continue vertically to the foundation.
Discontinuing or offsetting walls may create:
- Transfer forces
- Large local moments
- High shear demand
- Concentrated reactions
- Complex reinforcement detailing
Where discontinuities are unavoidable, the transfer mechanism must be explicitly analysed and designed.
What Engineers Should Review
An efficient wall arrangement should be evaluated using:
- Mode shapes
- Modal mass participation
- Torsional response
- Storey drift
- Diaphragm deformation
- Wall force distribution
- Overturning reactions
- Foundation demand
The first few mode shapes are particularly valuable because they reveal how the building naturally tends to move.
The Designage Approach
At Designage Consultants, shear wall configuration is developed as part of the overall structural concept.
The objective is not simply to provide more walls, but to create a balanced and efficient lateral system through:
- Rational wall placement
- Appropriate orientation
- Vertical continuity
- Control of torsional response
- Coordination with architectural planning
- Optimisation of structural and foundation demand
In high-rise design, the right wall in the right location can be more effective than several walls placed without considering the building’s overall behaviour.
